10 Inch MODBUS 1024X600 HMI Control Panel 64MB RAM For Plc Vfd Controller

Name: 10 Inch MODBUS 1024X600 HMI Control Panel 64MB RAM For Plc Vfd Controller
Brand: Coolmay
Price: 94 USD

China 10 Inch MODBUS 1024X600 HMI Control Panel 64MB RAM For Plc Vfd Controller wholesale

Brand Name : Coolmay

Model Number : TK6100FH

Certification : CE

Place of Origin : China

MOQ : 1

Price : usd94-usd1138 per piece

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs/month

Delivery Time : 5-7 working days

Packaging Details : box 36.5*26*10cm

Product : HMI

Display Size : 10 inch

Cutout Size : 262*180mm

Resolution : 1024*600

ROM : NOR Flash 16MB

RAM : 64MB

CPU : 32bit CPU 408MHz

Protocol : Support MODBUS, free port and common PLC communication Protocol

Contact Now

10 inch HD 1024X600 Pixels HMI Control Panel for plc vfd controller monitoring

Model:TK6100FH

Protection class: IP65, Waterproof

Com Port: RS232, RS485

Protocol: Support MODBUS, free port and common PLC communication Protocol

Downloading Port: USB Type C

Programming Software: mView

TK series HMI applied Coolmay software “mView”. “mView” is a set of stable and reliable human machine interface programming software for industrial occasions. Independent and original system design, running speed increased by 200%, memory usage reduced by 50%.
It supports many communication protocols and can communicate with more than 200 PLC and controllers on the market.

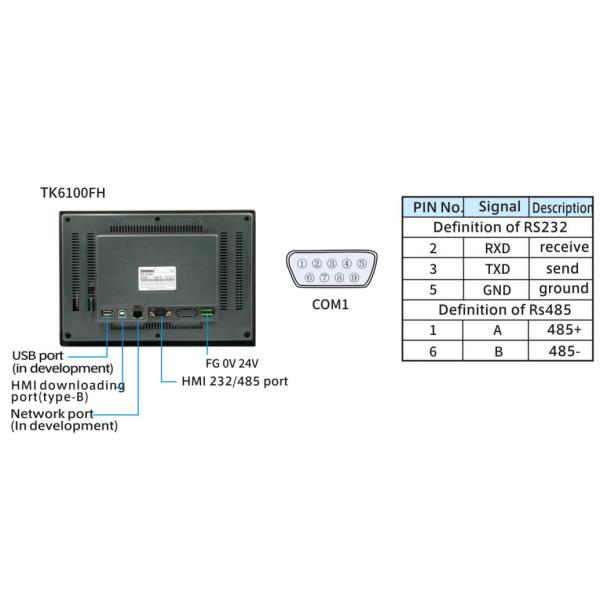

Com Port Definition :

10 Inch MODBUS 1024X600 HMI Control Panel 64MB RAM For Plc Vfd Controller

Installation :

10 Inch MODBUS 1024X600 HMI Control Panel 64MB RAM For Plc Vfd Controller

More Size In stock!

Specification	TK6037FH	TK6043FH	TK6050FH	TK6070FH	TK6100FH
Dimension	88x88x25mm	134x102x36mm	151x96x36mm	200x146x36mm	27519436mm
Cutout Size	72x72mm	120x94mm	143x86mm	192x138mm	262x180mm
Display	3.5 inch	4.3 inch	5 inch	7 inch	10 inch
Display size	73x56mm	97x56mm	108x65mm	154x87mm	222x125mm
Resolution	320*240	480*272	800*480	800*480	1024*600
Touch type	4-wire resistive panel
RAM	64MB
CPU	32bit CPU 408MHz
Operating System	No operating system
USB	Type C, for downloading program
COM port	1 RS232 and 1 RS485
Optional	NULL	1 WIFI (occupy default RS485 port)
Protocol	Support MODBUS, free port and common PLC communication Protocol
Calendar	Yes
Input Voltage	12-24VDC±10%<150mA @ 24VDC
Protection Class	IP65 (front panel)
Temperature	Ambient environment: 0～50℃ \| Storage environment: -20～70℃
Humidity	20%～90% RH
Software	mView Coolmay programming software
